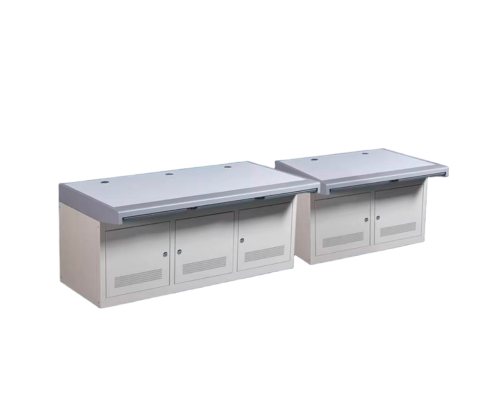

Monitoring Operating Console
- Model
- MOC-A
Item specifics
- Colour
- White
- Material
- SPCC
- Size
- 600*600*750
Review
Description
Product Introduction

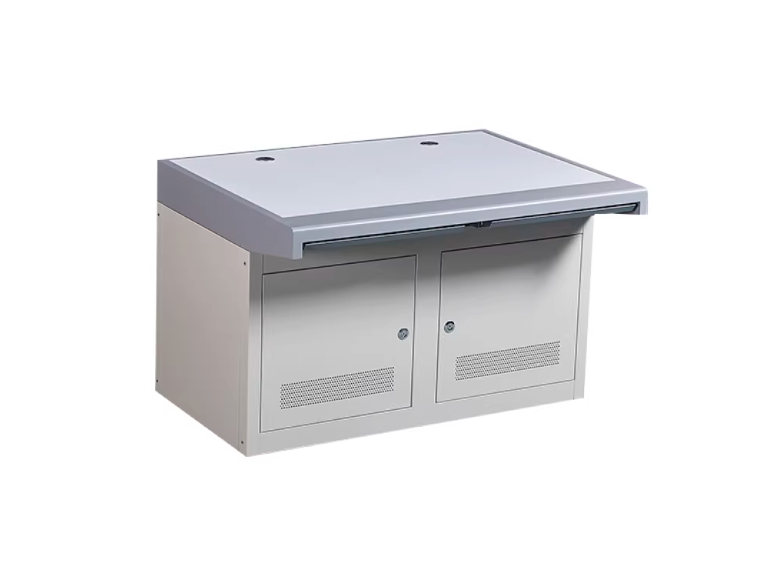

MOC-A
High Rigidity Heavy Cutting Double Column Machining Center / Monitoring Operating Console
SPCC
MATERIAL1mm
SIDE1.5mm
UPRIGHT1mm
DOOR
Product Detailed Parameters
Machine Model : MOC-A
Model Name | Length(mm) | Width(mm) | Height(mm) |
MOC-A1 | 900 | 600 | 750 |
MOC-A2 | 900 | 1200 | 750 |
MOC-A3 | 900 | 1710 | 750 |
MOC-A4 | 900 | 2400 | 750 |

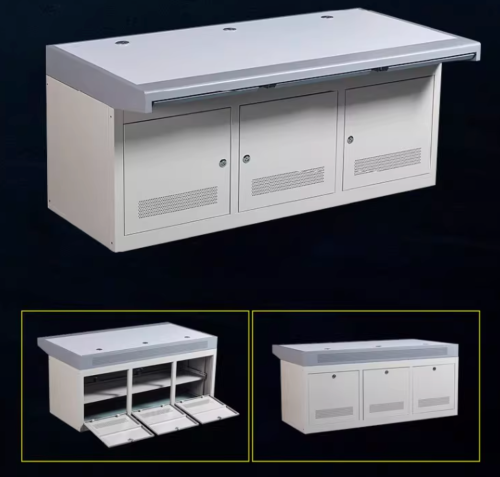

Product Details Map
Modular and interchangeable :
The side is equipped with parallel holes, allowing for wireless parallel operation of the console according to your needs.
Direct Driven Spindle :
Spindle motor directly connects to spindle through high quality carbon fiber coupling.
Cooling thermal-protective coating of main motor
High torque high rigidity MAYR carbon fiber coupling (Tks=975Nm), which helps to fulfill the nice performance of main motor as overturn torque is much reduced.
Counter Weight System- Double Hydraulic Cylinders :
Z axis with balance counterweight system ( double balance cylinder + hydraulic station ) to improve Z axis stability and positioning accuracy.
Hydraulic station not only provide power source for balance cylinder, but also for tool clamping and unclamping.
Double balance cylinder can efficiently decrease bending moment during Z axis movement.
Direct Driven Spindle :
Spindle motor directly connects to spindle through high quality carbon fiber coupling.
Cooling thermal-protective coating of main motor
High torque high rigidity MAYR carbon fiber coupling (Tks=975Nm), which helps to fulfill the nice performance of main motor as overturn torque is much reduced.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
