Standard Network Cabinet (Full-size customization)
Standard Network Cabinet (Full-size customization)
Standard Network Cabinet (Full-size customization)

Standard Network Cabinet (Full-size customization)

Model
NE-C

Item specifics

Size
Customization(18/22/27/32/37/42/47 U)
Colour
Black/White
Max Load Capacity
800kg
Front Door
Tempered glass/1.2mm SPCC
Back
perforation-free sheet metal
Protection Level
IP20

Review

Description

Product Introduction
NE2/NE3 Series

High Rigidity Heavy Cutting Double Column Machining Center / Standard Network Cabinet

  • 18-47U

    SIZE

  • custom

    WIDTH

  • custom

    DEPTH

  • 800KG

    CAPACITY
High Rigidity Heavy Cutting Double Column Machining Center
Product Detailed Parameters
Machine Model : NE2/NE3 Series
Component Specification
Table
Material
Surface Finish
Upper ledge
1.2mm SPCC cold-rolled sheet
Spraying plastics
Square-shaped hole bar
2.0mm anti-fingerprint aluminized zinc plate
Original
Link block
1.5mm SPCC cold-rolled sheet
Spraying plastics
Wire channel
0.8mm SPCC cold-rolled sheet/Plastic
Spraying plastics
Beam
1.5mm anti-fingerprint aluminized zinc plate
Original
Under ledge
1.2mm SPCC cold-rolled sheet
Spraying plastics
Front door
5mm white tempered glass
Spraying plastics
Frame
1.2mm SPCC cold-rolled sheet
Spraying plastics
Side door
1.2mm SPCC cold-rolled sheet
Spraying plastics
Back door
1.2mm SPCC cold-rolled sheet
Spraying plastics

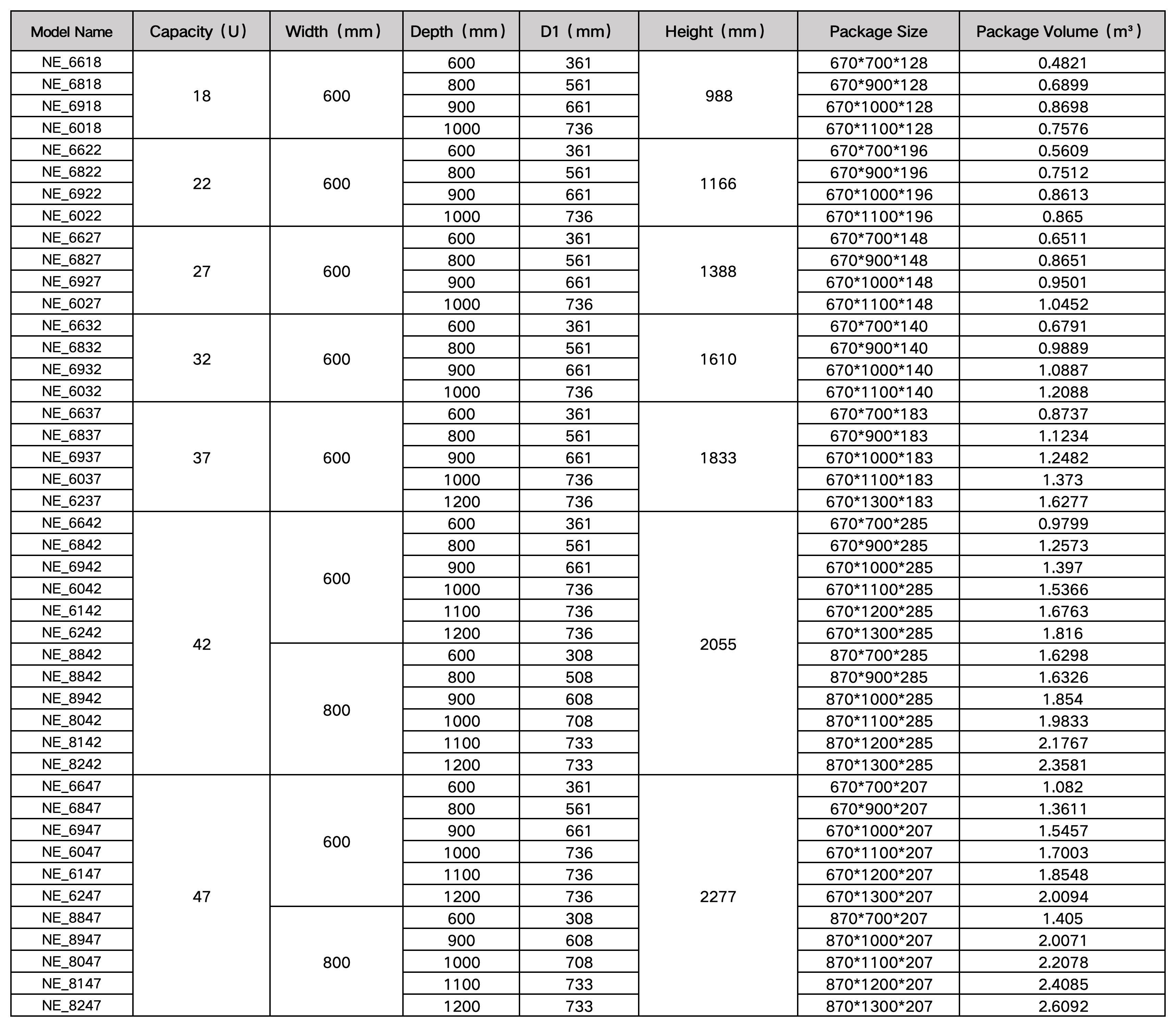

Full-size Specification
Full-size Specification
Product Details Map
Thickened full steel cabinet body :
Protection level IP20, capable of withstanding a weight of 800kg, resistant to impacts, and with a longer service life
Thickened full steel cabinet body
Galvanized column frame
Galvanized column frameļ¼š
Use SPCC refined cold-rolled steel, which is durable and resistant to heat without deformation. The column is galvanized and the size is precise, allowing for free adjustment of the installation holes.
Exhaust System :
The cabinet is equipped with internal temperature-controlled fans. It is modularly integrated and can be connected in parallel with multiple fans. Maintenance is simple.
Exhaust System
Front Door
Front Door :
Selected thickened tempered glass
Safe and sturdy tempered glass door, resistant to scratches, high temperature, waterproof, moisture-proof, does not deform, and does not hurt hands in case of breakage.
What we can do for you?
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
